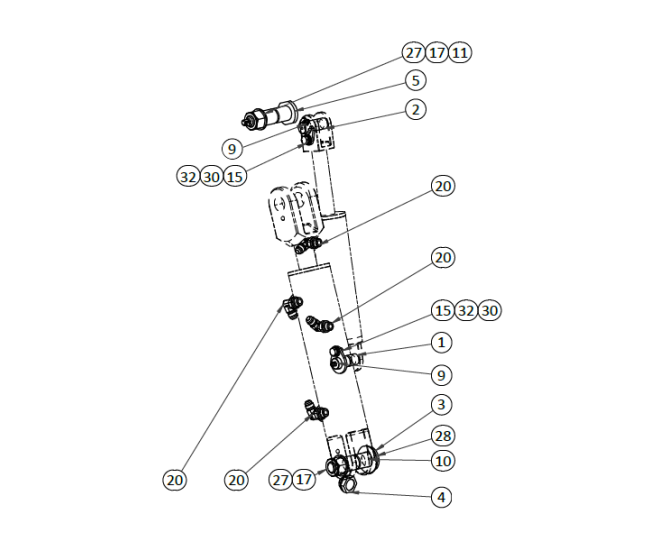

P220 CYLINDER ASSEMBLY

NO.	PART #	DESCRIPTION
1	DL-000360	PIN RAM
2	DL-000364	ATTACHMENT PLATE PIN
3	DL-000513	LOADER PIN
4	DL-000746	MAGNETIC PLUG HYDRAULIC DRAIN
5	DL-002981	TOP LIFT PIN
9	FA-000211	GREASE NIPPLE M6
10	FA-000525	STRAIGHT GREASE NIPPLE 1/8"
11	FA-000526	90 DEGREE GREASE NIPPLE 1/8"
15	FA-100098	BOLT HEX M8
17	FA-100184	NUT NYLOC M20
20	HA-000031	ELBOW - MALE FITTING
27	WA-100005	WASHER M20
28	WA-100006	WASHER
30	WA-100022	SPRING WASHER M8
32	WA-100034	WASHER
33	CY-000147	TILT CYLINDER ASSEMBLY
34	CY-000163	MAIN LIFT CYLINDER ASSEMBLY
