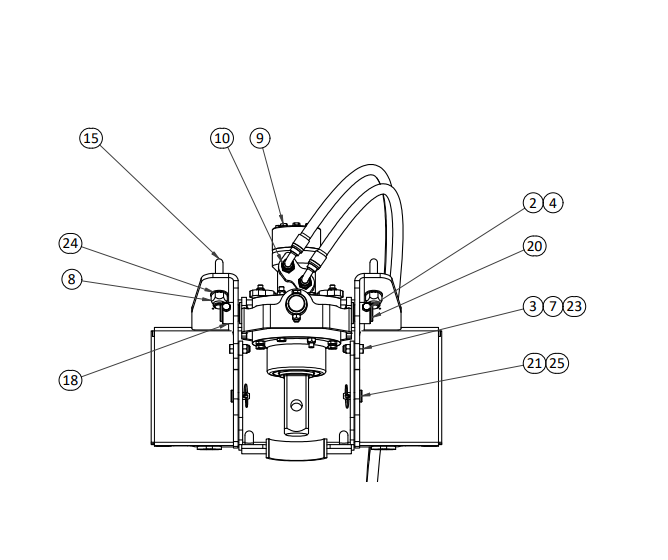

FOUR WAY SWING CRADLE

NO.	PART #	DESCRIPTION
2	FA-000009	BOLT - HEX
3	FA-000013	BOLT HEX M12
4	FA-000097	NYLOC NUT M10
7	FA-000189	HEX NYLOC NUT M12
8	FA-100177	NUT NYLOC M20
15	LI-000024	M20 LIFTING EYEBOLT
16	ML-000158	RING ASSEMBLY
17	ML-000166	CRADLE
18	ML-000171	2 AXIS SWING - FRAME ASSEMBLY
20	PI-000146	PIVOT PIN - TWO AXIS SWING
21	PI-000147	CRADLE PIN - 2 AXIS SWING
23	WA-000016	WASHER
24	WA-100005	WASHER M20
25	PI-000018	LYNCH PIN
